Receive data from Arduino in Isadora

(These are notes, still need to be converted into a nice report)

Arduino code:

#define BUTTON_PIN 2

void setup()
{
Serial.begin(9600);
pinMode(BUTTON_PIN, INPUT_PULLUP);
}

void loop()
{
Serial.println(digitalRead(BUTTON_PIN));
delay(100);
}

source: https://roboticsbackend.com/arduino-push-button-tutorial/

Isadora settings

Communications:> Serial port setup
Port 1
Device: select -> usbmodem

Communications>
Enable serial ports

Screenshot 2025-01-14 at 10.52.26.png Screenshot 2025-01-14 at 10.51.58.png

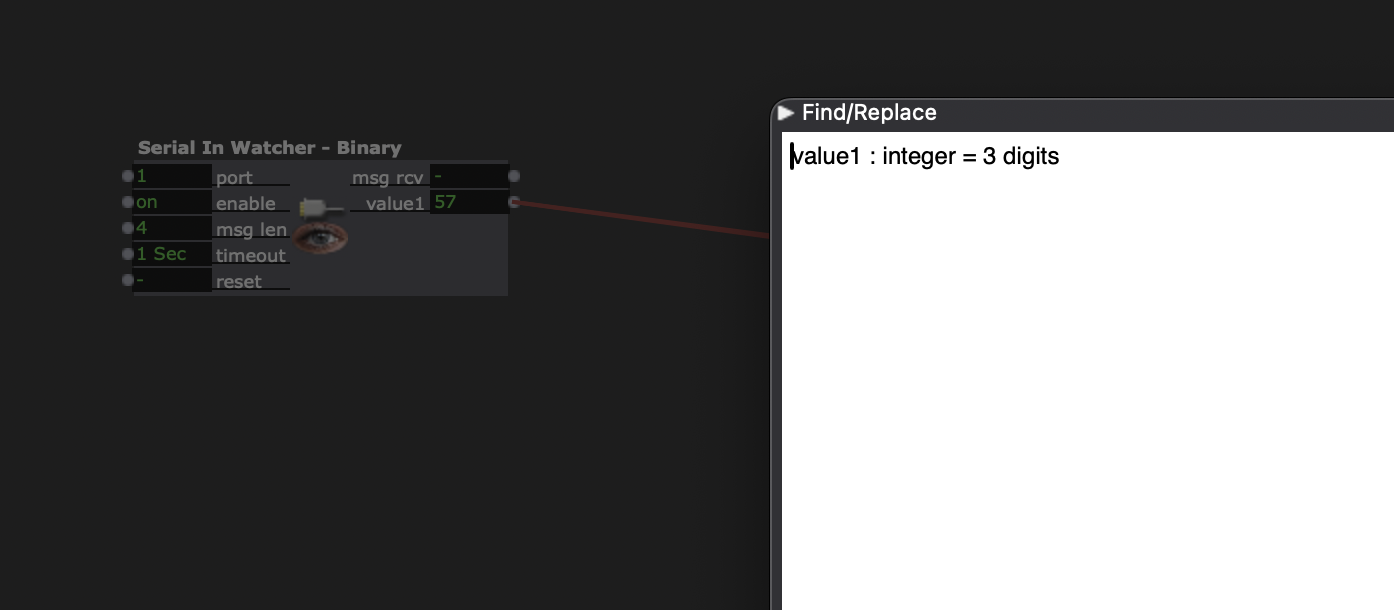

Use serial in watcher actor
open the actor by double klikking it and fill in this code : value:int=eol
in actor put eom char on 10

Screenshot 2025-01-14 at 10.48.07.png

NB! If you have this on, close the serial monitor in Arduino,
If the serial monitor is on, Isadora cannot connect to the Arduino.
This also works the other way around. If you want to adjust your code in Arduino and you want to test the code, you must turn off the serial monitor in Isadora.

Open serial monitor in isadora:
windows > show monitor
Here you can see that the data is coming in from the Arduino. On the far right you can see that the value changes from 0 to 1 when you press the button. The serial monitor is for monitoring purposes only. You can turn it off when you see that the connection works.

In the Serial in watcher actor you see that the value changes from 0 to 1. You can use that output for your patch.
