Instruction on how to start and use the multiplane cabinet

1 Power up

Connect the power strip power cord of the cabinet to a power point and switch on the power strip

2 Led light

Turn on the LED strip (2a) and LED lamp (2b) with the corresponding remote controls

3 start up computer and run software

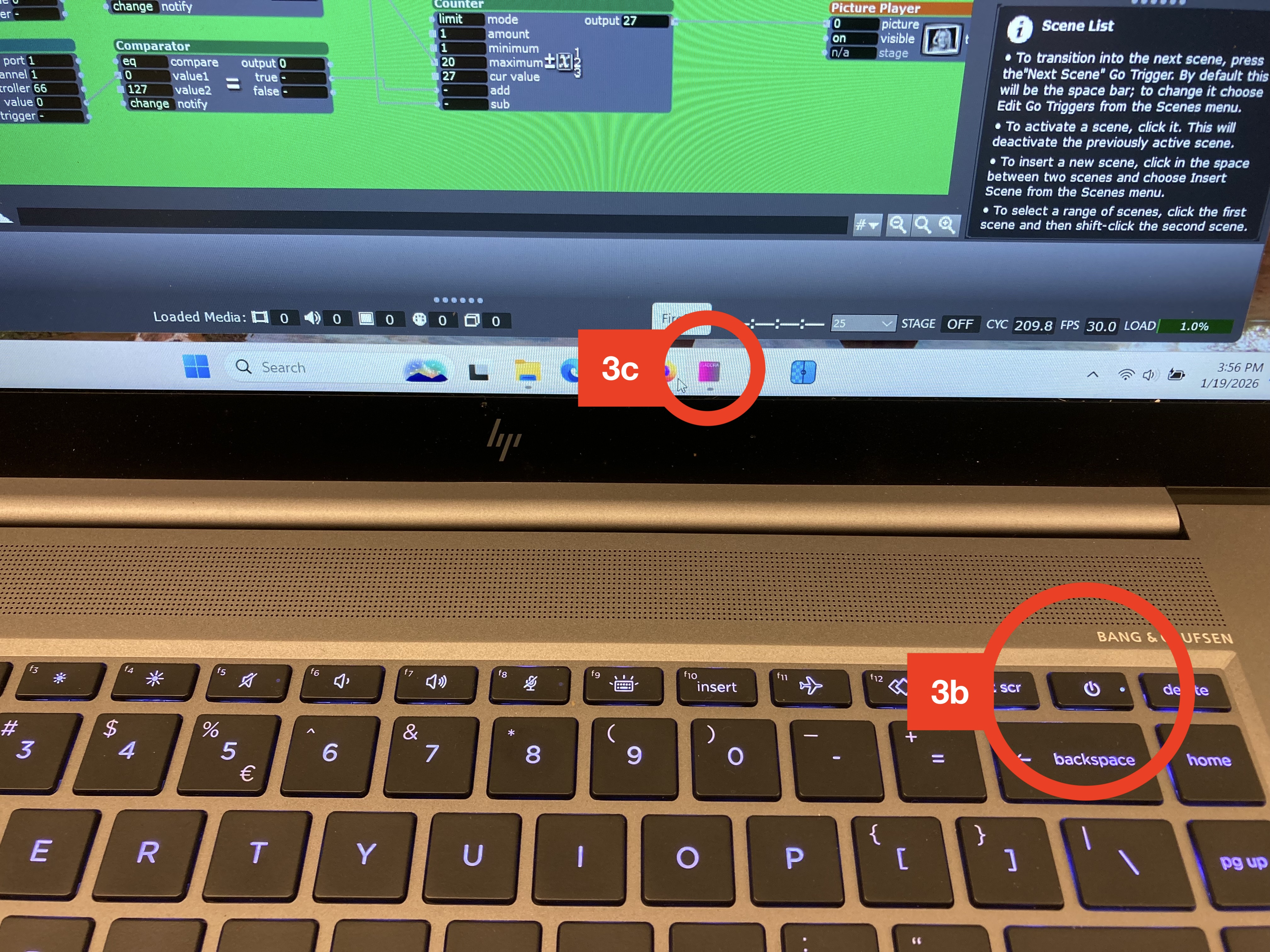

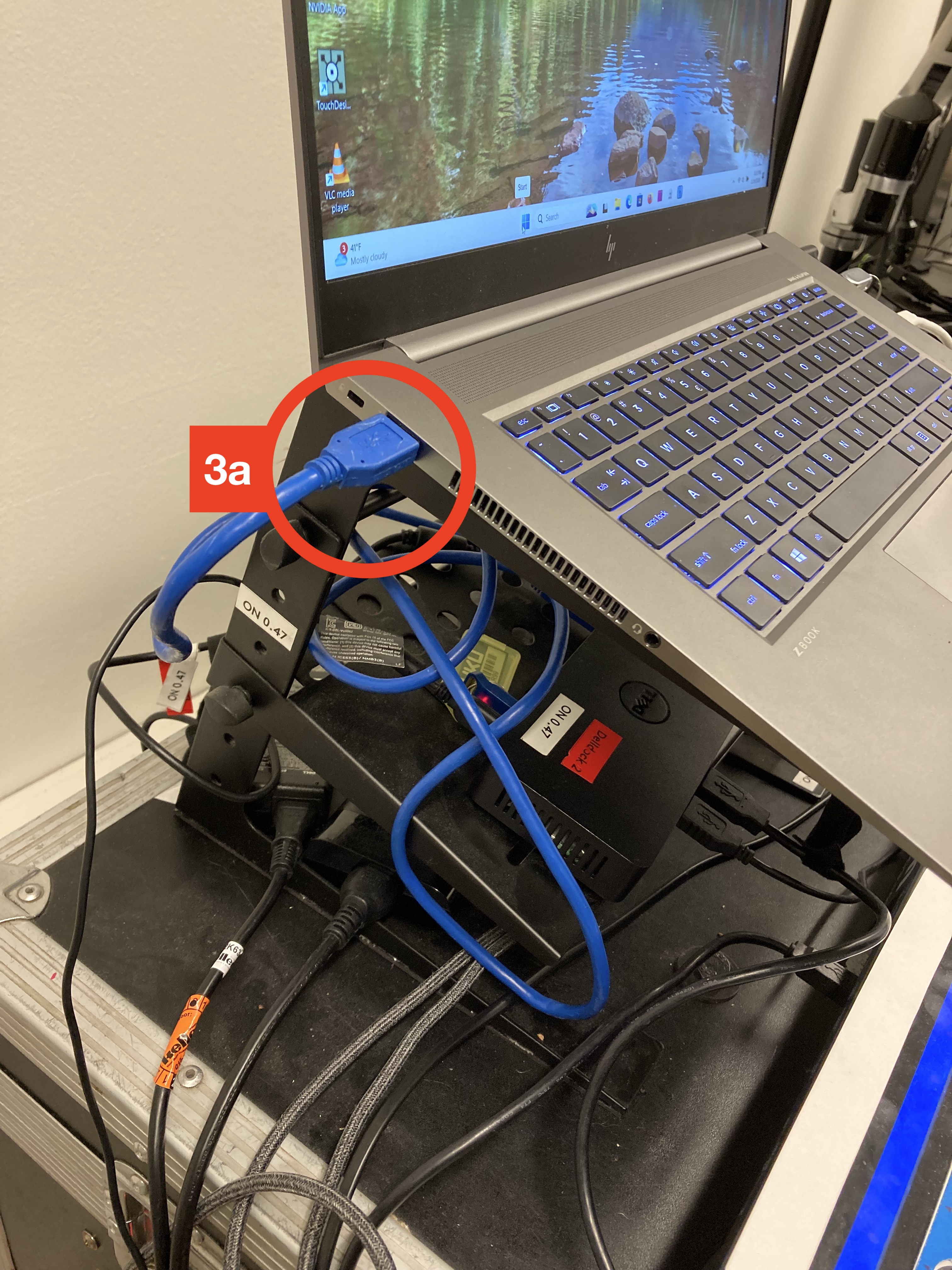

Plug in the blue USB cable before starting up the computer (3a). Start up the computer (3b) and log in (see usrnm & ww computer), and start up the Isadora software (3c)

4 Load controller preset

On the Midi controller press the “preset” button (4a) and select the template ON047 (see controller display). Mostly it is the default setting.

5 Open and create file

Double click on the Isadora file “blank_????”, or open through it through the file menubar. Click away all notifications.

5a save this file in a newly created personal file and folder
5b select the folder via the menu “output” and “set captured media folder”

6 Select camera

Go to “input” in the menu bar and click “start live capture”, and select the Logitech C920 webcam in the video/ device dropdown menu

7 Fill the screens

Go to “Output” in the menu bar and click twice on “Force stage preview” (or shift + command + F)

8 Controlling the Logitech webcam

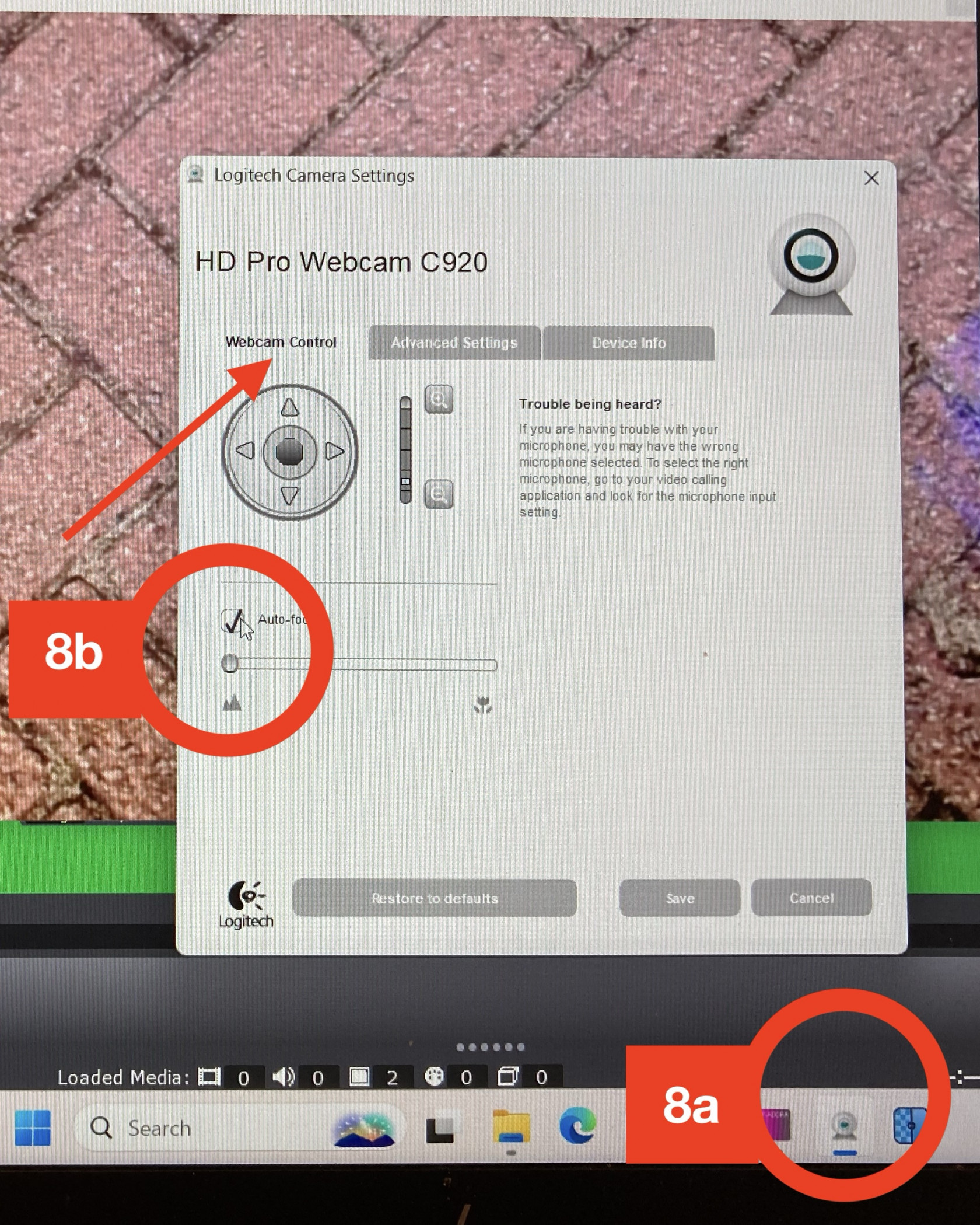

To prevent the camera from auto focussing and auto adjusting the white balance, you can run the control software and switch on the manual override.

9 Controller parameters

Now you can start adding materials to the multiplane cabinet and tweak and record with the controller following the hand out below.
